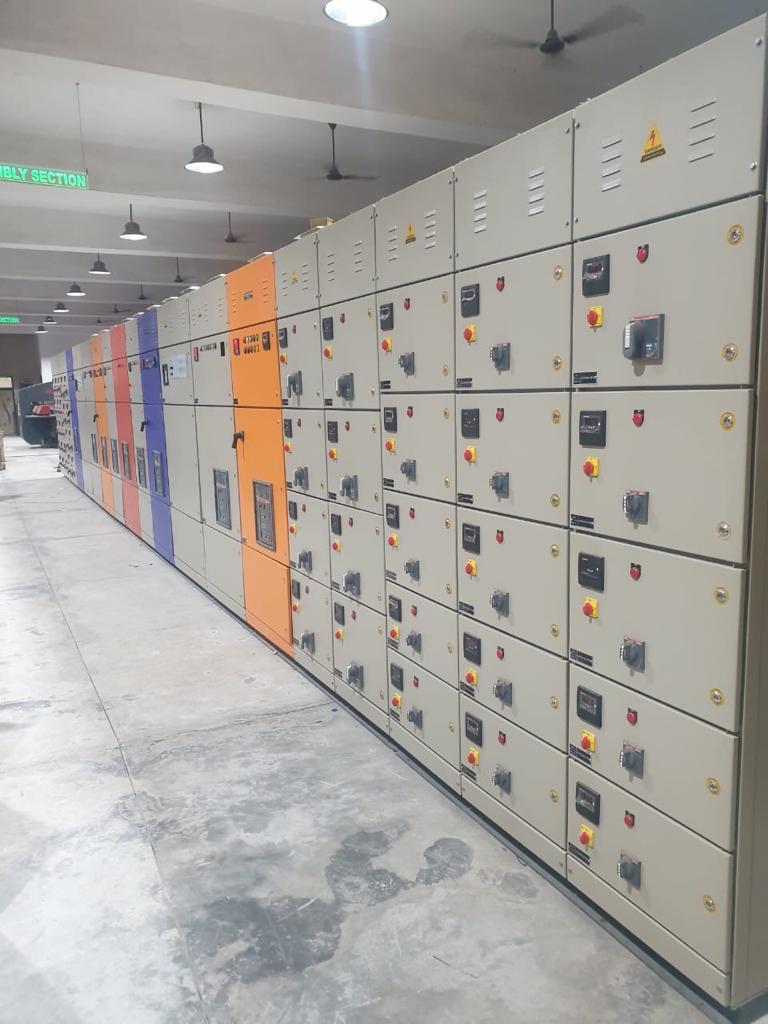

PLC Synchronization panel

PLC Synchronization panel

It is used to supply DG set power in absence of main power. It comprises of control of DG set as well as switching of breakers. In absence of main source it start DG set automatically i.e. Auto mains failure (AMF), synchronizes DG set with each other automatically along with auto load sharing and load dependent start/stop of DG set. On resumption of mains it operates respective breakers and switches off DG set.

TYPE Fixed /Draw out, fully componential, dust and vermin proof
PROTECTION CLASS IP42 / IP 54 / IP 55 - optional
MOC CRCA 10 / 12 / 14 / 16 guage as required. Modular construction with wide choice of compartment size
RATED VOLTAGE 600V, 50 Hz, 3-phase, 4wire
RATED CURRENT Up to 6000A main bus bar
SHORT CIRCUIT LEVEL STD 50 KA 1 sec
Optional 65 KA 1 sec
BUSBAR Aluminium/ Copper, Electrolytic Grade
STANDARD IS 8623.DT
BUS CHAMBER With Safety barrier
CABLE CHAMBER Ample space for cabling with supports
ENTRY Top or Bottom
SYNCHRONIZING AMF
Paralleling DG sets Auto Synchronizing of DG sets
Auto loads sharing (Auto)
Relay Microp
