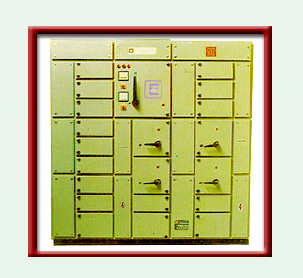

Power Distribution Panels
Power Distribution Panels are used for distribution of power on down streams. Since it is located at down stream fault level is normally lower about 20 to 35 KA. Normally it is designed to carry current up to 800A. Advantage of using Power Distribution Panel is to clear fault locally hence it does not affect Upstream Switchgear.
| TYPE | Fixed floor mounted / Wall mounted ACB OR MCCB. |
| PROTECTION CLASS | IP42 / IP 54 / IP 55 - Optional |
| MOC | CRCA 14 / 16 guage as required, modular construction, interchangeability of compartment |
| RATED VOLTAGE | 440 / 415 V 50 Hz |
| RATED CURRENT | 800 / 600 A. |
| SHORT CIRCUIT LEVEL | 35 / 50 KA |
| ENCLOSURE TYPE | Indoor / Outdoor |
| BUSBAR SUPPORT | SMC/DMC |
| BUSBAR | Aluminium/Copper Electrolytic grade |
| STANDARD | IS 8623 |
| BUS CHAMBER | With safety barrier |
| CABLE CHAMBER | Ample Space for Cabling |
| ENTRY | Top or Bottom. |
