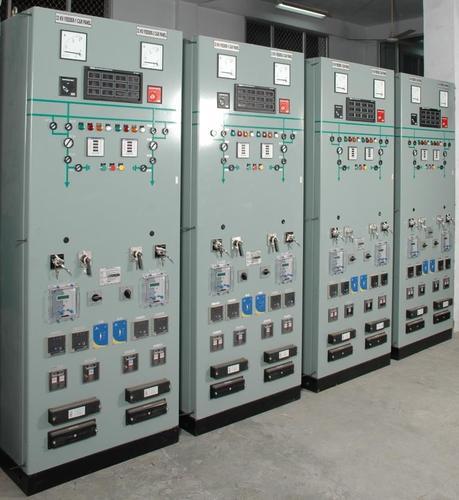

Relay and Metering Panels
Relay and metering panels are used to control HT breaker on remote operation. It contains various protective relays required for the system and metering to measure electrical parameters.
| SUITABLE FOR | Transformer application Motor starting Capacitor switching |
| RELAY TYPE | Numerical with communication port optional, annunciation for fault indications. Draw out / Non draw out. |
| MIMIC DIAGRAM | To show system function with Semaphone Indicat. |
| ENTRY | Top or Bottom. |
| ENCLOSURE | Simplex or Duplex |
