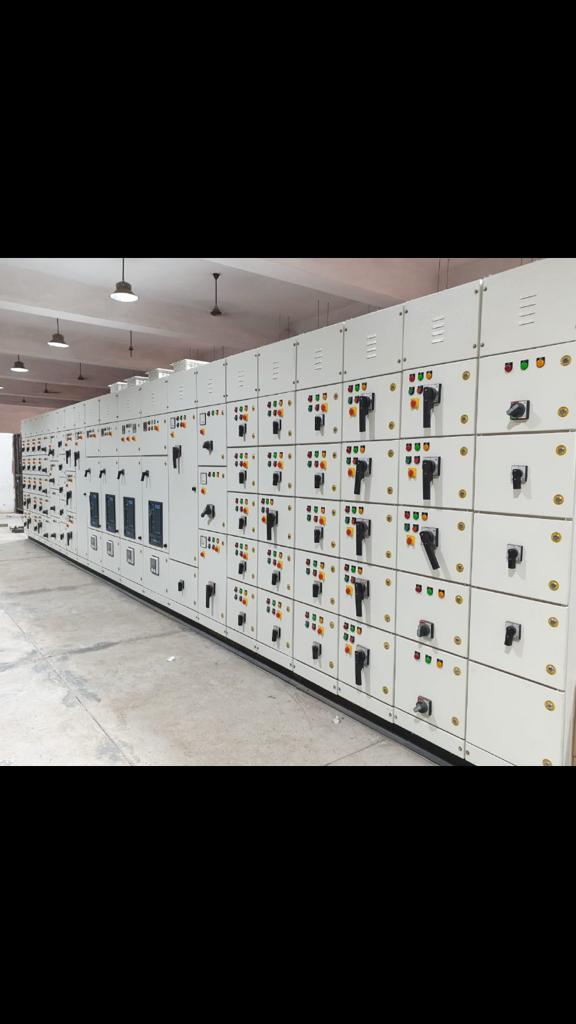

Motor Control Centres (M.C.C.)
Motor Control Centers are suitable for operation of motors ranging from 0.5HP to 500 HP capacity. Motor control center contains various types of starting viz. Direct on line (DOL), Star-Delta, autotransformer, Soft starter etc. Local and remote operation facility, compatible to PCC/DCS based operation. Motor Control Center is properly ventilated in case of higher size of motor starter. Component layout is made so as to facilitate ease of operation and maintenance
| TYPE | Modular /non-modular, Fixed/Draw out, single front/double front, dust and Vermin proof |
| PROTECTION CLASS | IP42 / IP 54 / IP 55 - Optional |
| MOC |
CRCA 12 / 14 / 16 guage as per required. Interchangeability of compartment |
| RATED VOLTAGE | 380 / 415 / 440 V, 50 HZ, 3 phase, 4 wire |
| RATED CURRENT |
3200 A main bus bar. |
|
SHORT CIRCUIT LEVEL |
35 KA / 50 KA for 1 sec |
| ENCLOSURE TYPE | Indoor / Outdoor |
| BUSBAR SUPPORT | SMC/DMC, Epoxy. |
| BUSBAR | Aluminium / Copper, Electrolytic grade |
| STANDARD | IS 8623 |
| BUS CHAMBER | With safety barrier |
| CABLE CHAMBER | Ample space for cabling with supports |
| ENTRY | Top or Bottom |
