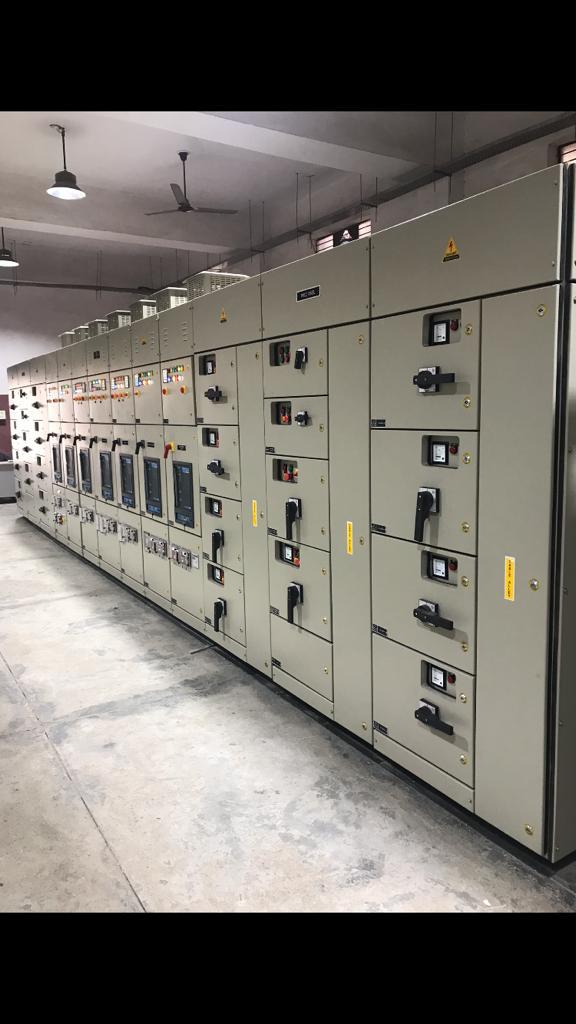

Power Control Centres (P.C.C.)

Power Control Centre is used for distribution and control of various power source used in industry. Normally Power Control Centers is installed near power source hence fault level is high. It is designed to suit fault level of 50KA or 65 KA for 1 sec. Busbar system in Power Control Centers are designed to suit the fault level as well as temperature rise to 40°c above ambient. Ample space is provided for cable termination. Various protections viz short circuit, overload, earth fault, under voltage etc are provided to protect source and equipment

TYPE	Fixed/Draw out fully componential, dust and vermin proof
PROTECTION CLASS	IP42 / IP 54 / IP 55 - Optional
MOC	CRCA 10 / 12 / 14 / 16 Guage as required. Modular construction with wide choice of compartment size
RATED VOLTAGE	600 V, 50 HZ, 3 phase, 4wire
RATED CURRENT	Up to 6000A main busbar
SHORT CIRCUIT LEVEL	STD 50 KA 1 sec Optional 65 KA 1 sec
BUSBAR SUPPORT	SMC / DMC
BUSBAR	Aluminium / Copper, Electrolytic grade
STANDARD	IS 8623.DT
BUS CHAMBER	With safety barrier
CABLE CHAMBER	Ample space for cabling with supports
ENTRY	Top or Bottom
